Specifications |
Manufacturer |
ECE |
Fuse type |
PTC polymer |
Rated current |
1A |
Max surge current |
10A |
Switched current |
2A |
Voltage max. |
240V AC |
Power |
2.9W |
Min. resistance |
220mΩ |
Max resistance |
580mΩ |
A dimension |
18.7mm |
B dimension |
24.4mm |
C dimension |
10.2mm |
D dimension |
7.6mm |
E dimension |
5.1mm |
Operating temperature |
40...85°C |
Leads dimensions |
0.81 x 7.6mm |

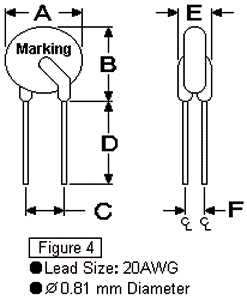

Dimensions |
VIEW |
|
|
