Polymer Fuse - Fuse PTC polymer, 14A, Pitch 10.2mm, Leads dim Ø0.81x1mm

Κωδικός: 38620

RG14A-16 PDF

RG14A-16

Τιμή χωρίς ΦΠΑ:  0.95 €
Αξία ΦΠΑ:  0.23 €
Τελική με ΦΠΑ:  1.18 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer ECE
Type of fuse PTC polymer
Current rating 14A
Max surge current 100A
Switched current 23.8A
Max. voltage 16V DC
Power 4.6W
Min. resistance 2mΩ
Max resistance 8mΩ
Terminal pitch 10.2mm

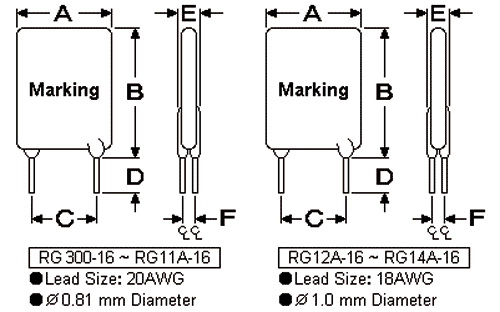

A dimension 27.9mm
B dimension 27.9mm
C dimension 10.2mm
D dimension 7.6mm
E dimension 3.4mm
F dimension 1.4mm
Operating temperature -40...85°C
Leads dimensions Ø0.81x1mm
Dimensions  VIEW
Gross weight 2.435 g

Διαθεσιμότητα: Με παραγγελία
