Specifications |
Manufacturer |
ECE |
Fuse type |
PTC polymer |
Rated current |
120mA |
Max surge current |
1.2A |
Switched current |
300mA |
Voltage max. |
240V AC |
Power |
1W |
Min. resistance |
3Ω |
Max resistance |
12Ω |
A dimension |
8.3mm |
B dimension |
10.7mm |
C dimension |
5.1mm |
D dimension |
7.6mm |
E dimension |
3.8mm |
Operating temperature |
40...85°C |
Leads dimensions |
0.51 x 7.6mm |

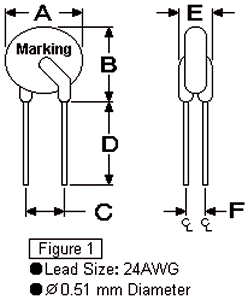

Dimensions |
VIEW |
|
|
