Μπουτόν - Switch vandal resistant, Pos 2, SPDT, 0.5A/220VAC, 1A/24VDC, IP65

Κωδικός: 40642

LAS2GQF-E.pdf PDF

V16-11R-24B-S

Τιμή χωρίς ΦΠΑ:  7.46 €
Αξία ΦΠΑ:  1.79 €
Τελική με ΦΠΑ:  9.25 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ONPOW
Type of switch vandal resistant
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R(at resistive load) 0.5A / 220V AC
DC contacts rating @R(at resistive load) 1A / 24V DC
IP rating IP65
Switching method(the position in bracket indicates momentary position.) ON-(ON)
Illumination LED, ring
Backlight colour blue
Illumination voltage 24V
Leads for soldering
Operating temperature -20...55°C
Electrical life 50000 cycles
Max. contact resistance: 50mΩ
Operating Force 4N
Mechanical durability 200000 cycles
Button shape flat
Mounting hole diameter Ø16mm
Body colour silver
Body material stainless steel
Ring shape rounded
Test voltage 2kV
Contact material silver alloy
Stable positions number 1

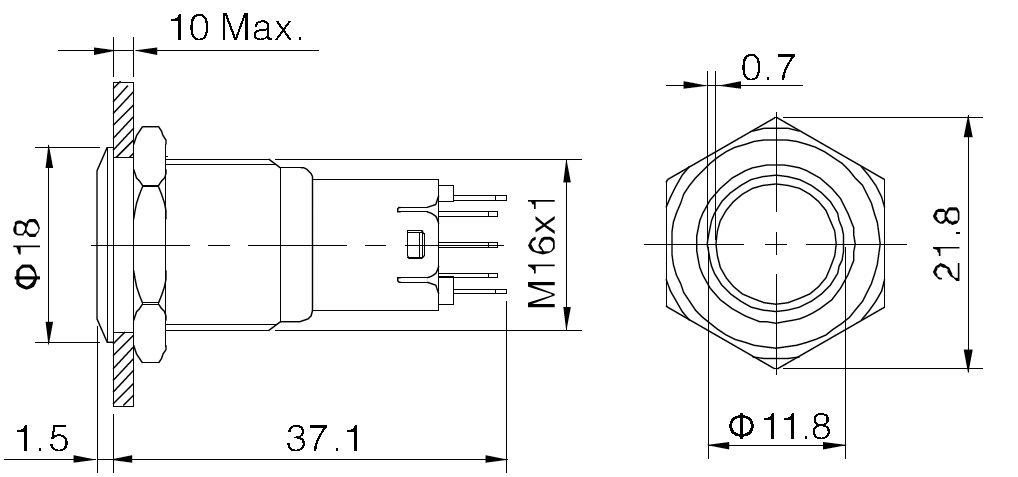

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
