Button - Switch push-button, Pos 2, DPST-NO, 16A/250VAC, 16A/28VDC, red

Prod code: 38158

AE-C7054AFNAA PDF

AE-C7054AFNAA

Price:  6.94 €
VAT:  1.67 €
Final price with tax:  8.61 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer BULGIN
Type of switch push-button
Number of positions 2
Contacts configuration DPST-NO
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 28V DC
Switching method OFF-(ON)
Backlight colour red
Illumination neon lamp 230V
Leads 6,3x0,8mm connectors
Operating temperature -25...70°C
Button shape round
Mounting hole diameter Ø25mm
Body colour black
Manufacturer series 7000
Actuator colour red
Mounting on panel
Stable positions number 1

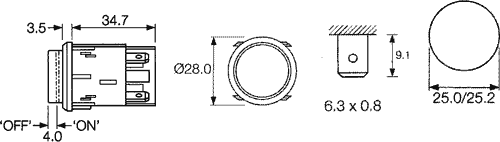

Dimensions  VIEW
Contacts layout  VIEW
Gross weight 13.47 g

Availability: With order
