Button - Switch push-button, 1-position, SPST-NO, 3A/250VAC, red, 50mÙ

Prod code: 21541
PS507A-BR PDF

PS507A-BR
Price:  1.50 €
VAT:  0.36 €
Final price with tax:  1.86 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Switch type push-button
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating 3 A / 250 VAC
Actuator colour red
Leads for soldering
Switching method OFF-(ON)
Operating temperature 25...70°C
Mounting hole diameter 16mm
Mounting on panel
Max. contact resistance: 50mΩ
Electrical life 6000cycles
Body material plastic
Panel thickness max 6mm

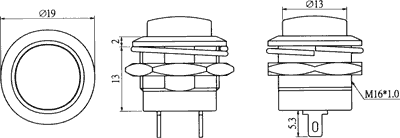

Dimensions  VIEW

Availability: On stock
