Button - Switch vandal resistant, 2-position, SPDT, 0.5A/220VAC, 1A/24VDC

Prod code: 25386

V16-21R-12B-S
Price:  8.66 €
VAT:  2.08 €
Final price with tax:  10.74 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ONPOW
Switch type vandal resistant
Stable positions number 2-position
Contacts configuration SPDT
AC contacts rating 0.5 A / 220 VAC
DC contacts rating 1 A / 24 VDC
Sealing IP67
Switching method ON-ON
Backlight colour blue
Leads for soldering
Operating temperature 20...55°C
Electrical life 200000cycles
Max. contact resistance: 50mΩ
Switching torque 4N
Mechanical durability 1000000cycles
Illumination LED 12V DC, ring light
Mounting hole diameter 16mm
Body colour silver
Button shape convex
Body material stainless steel
Test voltage 5kV
Contact material silver alloy

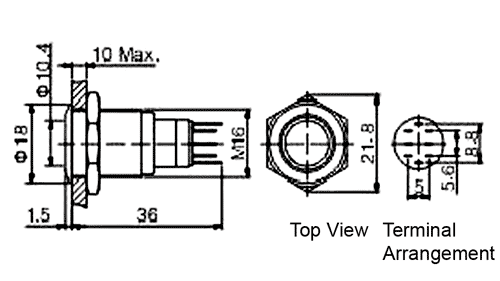

Dimensions  VIEW

Availability: On stock
