Button - Switch vandal resistant, 1-position, SPST-NO, 2A/36VDC, IP65

Prod code: 26313

V12S-10Y-A

Price:  3.24 €
VAT:  0.78 €
Final price with tax:  4.02 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ONPOW
Switch type vandal resistant
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 2 A / 36 VDC
Sealing IP65
Switching method OFF-(ON)
Leads screw terminals
Operating temperature 20...55°C
Electrical life 200000cycles
Max. contact resistance: 50mΩ
Switching torque 5N
Mechanical durability 1000000cycles
Body colour black
Mounting hole diameter ˜12mm
Button shape convex
Body material aluminium
Min. insulation resistance 1000MΩ
Actuator colour yellow
Height above panel 7.2mm
Button material PBT

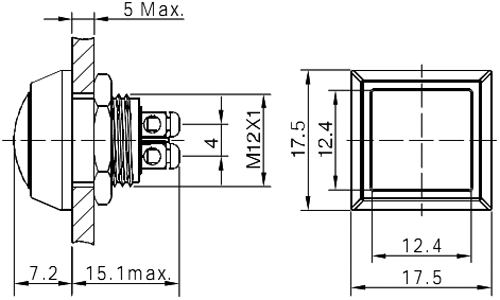

Dimensions  VIEW

Availability: With order
