Μπουτόν - Switch piezoelectric, Positions 2, SPST-NO, 0.2A/24VAC, IP68

Κωδικός: 31690

PS223P10Y01 PDF

PS223P10Y01

Τιμή χωρίς ΦΠΑ:  15.03 €
Αξία ΦΠΑ:  3.61 €
Τελική με ΦΠΑ:  18.63 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer ONPOW
Switch type piezoelectric
Number of all positions 2
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating @R 0.2 A / 24 VAC
DC contacts rating @R 0.2 A / 24 VDC
IP rating IP68
Switching method OFF-(ON)
Leads 30mm leads
Operating temperature 40...75°C
Electrical life 50000000cycles
Operating Force 6N
Button shape flat
Mounting hole diameter ˜22mm
Body colour silver
Body material aluminium
Switched voltage max 24V AC, max 24V DC
Contact current max. 0.2A

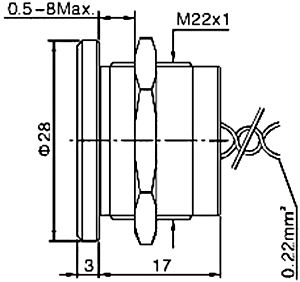

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
