Μπουτόν - Switch piezoelectric, 1-position, SPST-NO, 0.2A/24VAC, IP68, 0.2A

Κωδικός: 26412

PS193P10YSS1B12T PDF

PS193P10YSS1B12T

Τιμή χωρίς ΦΠΑ:  20.13 €
Αξία ΦΠΑ:  4.83 €
Τελική με ΦΠΑ:  24.97 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer ONPOW
Switch type piezoelectric
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating 0.2 A / 24 VAC
DC contacts rating 0.2 A / 24 VDC
Sealing IP68
Switching method OFF-(ON)
Backlight colour blue
Leads 30mm leads
Operating temperature 40...75°C
Electrical life 50000000cycles
Switching torque 6N
Illumination LED 12V DC, ring, thin
Body colour silver
Mounting hole diameter ˜19mm
Button shape flat
Body material stainless steel
Contact current max. 0.2A
Switched voltage max 24V AC, max 24V DC

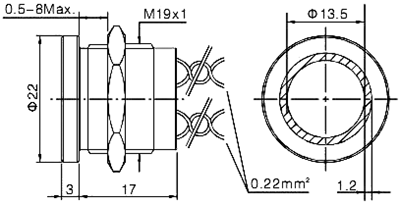

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
