Ηλεκτρονόμος - Relay interface, SPDT, Ucoil 230VAC, 16A, 16A/250VAC, 16A/24VDC

Κωδικός: 28583

PI85230AC00LV PDF

PI85230AC00LV

Τιμή χωρίς ΦΠΑ:  13.71 €
Αξία ΦΠΑ:  3.29 €
Τελική με ΦΠΑ:  17.00 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer RELPOL
Relay type interface
Contacts configuration SPDT
Rated coil voltage 230V AC
Operating current max. 16A
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 24 VDC
Switched voltage max 400V AC, max 300V DC
Mounting DIN, on panel
Leads screw terminals
Relay variant Relay set
Operate time 7ms
Release time 3ms
Relay series PI85
Operating temperature 40...70°C
Contact material AgNi
Body dimensions 78.1 x 15.9 x 66.5mm
Contact resistance 100mΩ
Coil power consumption 750mVA

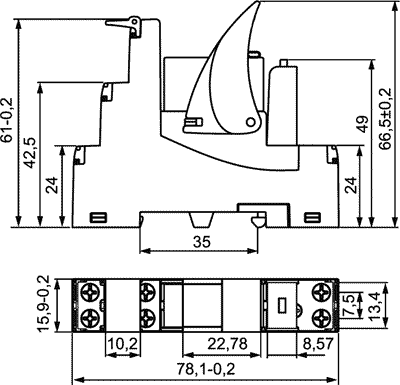

Dimensions  VIEW
Schematic diagram  VIEW

Kit contents:
  • socket
  • indication module
  • ejector
  • RM85 electromagnetic relay
  • label
Διαθεσιμότητα: Με παραγγελία
