Specifications |
| Manufacturer |
OMRON |
| Type of relay |
electromagnetic |
| Contacts configuration |
3PDT |
| Rated coil voltage |
230V AC |
| AC contacts rating @R |
10A / 250V AC |
| DC contacts rating @R |
10A / 30V DC |
| Contact current max. |
10A |
| Switched voltage |
max. 250V AC, max. 250V DC |
| Relay variant |
industrial |
| Mounting |
socket |
| Relay series |
MKS |
| Operating temperature |
-40...60°C |
| Body dimensions |
34.5x34.5x52.5mm |
| Coil resistance |
4.25kΩ |
| Contact resistance |
100mΩ |
| Contact material |
AgSnIn |
| Coil power consumption |
2.3VA |
| Leads |
stud terminals |
| Optional equipment |
mechanical indicator |
| Number of pins |
11 |
| Electrical connection |
round socket |
| Kind of connector |
undecal |
| Related items |
PF113A-E |

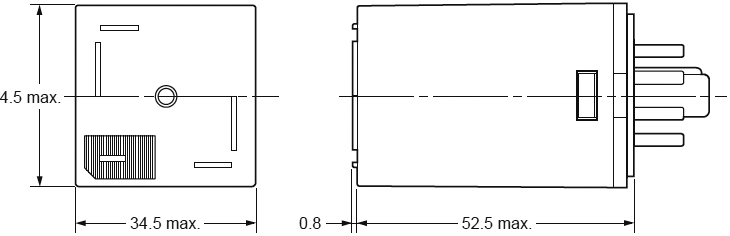

| Dimensions |
 VIEW |
| Gross weight |
88.11 g |
| |
|
