Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 5VDC, 5A/277VAC, 3A/30VDC

Prod code: 38682
ALDP105 PDF

ALDP105
Price:  2.04 €
VAT:  0.49 €
Final price with tax:  2.52 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer PANASONIC
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 5V DC
AC contacts rating @R 5A / 277V AC
DC contacts rating @R 3A / 30V DC
Contact current max. 5A
Switched voltage max. 30V DC,   max. 277V AC
Relay variant miniature
Mounting PCB
Coil resistance 125Ω
Coil voltage min. 3.75V DC
Body dimensions 20.5x7.2x15.3mm
Coil power consumption 200mW
Mechanical durability 5000000 cycles
Operating temperature -40...85°C
Relay series ALDP
Contact material AgNi
Coil current 40mA

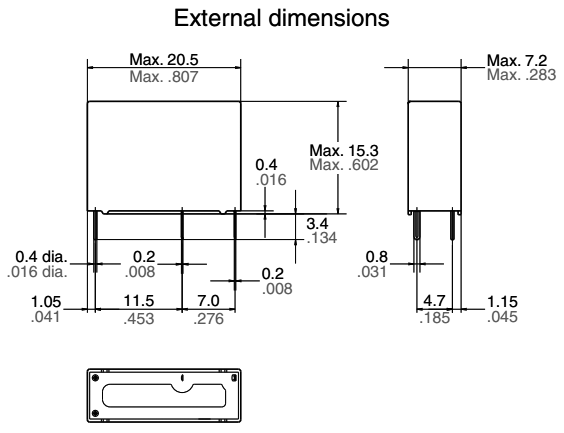

Dimensions  VIEW

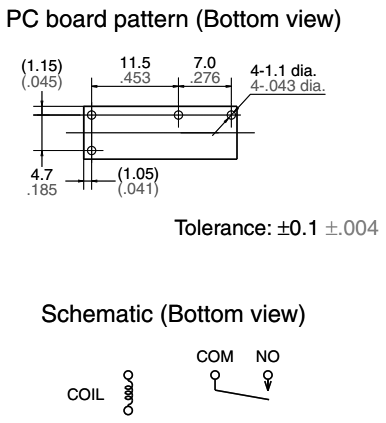

Output configuration  VIEW
Gross weight 3.545 g

Availability: With order
