Relays PCB - Relay electromagnetic SPST NO Ucoil 24VDC 8A/250VAC 5A/30VDC

Prod code: 13613
G6RN-1A-24 PDF

G6RN-1A-24
Price:  2.82 €
VAT:  0.68 €
Final price with tax:  3.50 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 8A
Switched voltage max 30V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 2.62kÙ
Operate time 15ms
Body dimensions 28.5 x 20 x 15mm
Release time 5ms
Coil power consumption 220mW
Operating temperature 40...85°C
Relay series G6RN
Terminal pitch 5.1mm
Coil current 9.2mA

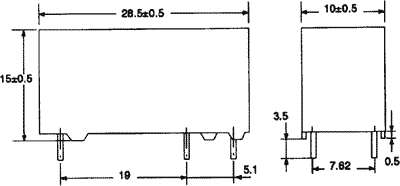

Dimensions  VIEW

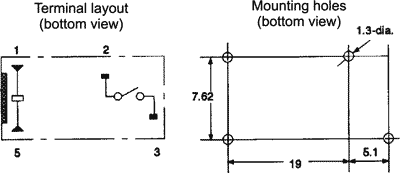

Output configuration  VIEW

Availability: With order
