Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 6A/250VAC, 6A/30VDC

Κωδικός: 29473

RE032012 PDF

RE032012

Τιμή χωρίς ΦΠΑ:  3.32 €
Αξία ΦΠΑ:  0.80 €
Τελική με ΦΠΑ:  4.11 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating 6 A / 250 VAC
DC contacts rating 6 A / 30 VDC
Contact current max. 6A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 720Ω
Coil voltage min. 8.4V DC
Operate time 10ms
Body dimensions 20 x 10.6 x 10mm
Release time 5ms
Coil power consumption 200mW
IP rating IP67
Mechanical durability 300000000cycles
Operating temperature 40...70°C
Weight 5g
Relay series RE
Contact material AgNi + Au
Terminal pitch 2.54mm
Coil current 16.7mA

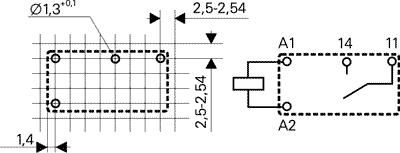

Dimensions  VIEW
Output configuration  VIEW

Διαθεσιμότητα: Αμεσα
