Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 5A/250VAC, 5A/30VDC

Κωδικός: 32001

S5H-12-1AS PDF

S5H-12-1AS

Τιμή χωρίς ΦΠΑ:  1.02 €
Αξία ΦΠΑ:  0.24 €
Τελική με ΦΠΑ:  1.26 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SHORI ELECTRIC
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 30V DC
Contact current max. 8A
Relay variant miniature
Mounting THT
Coil resistance 320Ω
Operate time 10ms
Body dimensions 18.8x15.6x10.4mm
Release time 5ms
Operating temperature -40...70°C
Relay series S5H
Contact resistance 100mΩ
Terminal pitch 1.5mm
Coil current 37.5mA

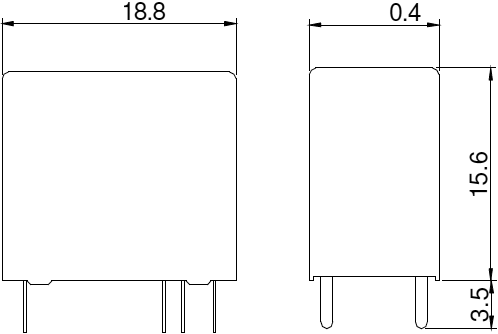

Dimensions  VIEW

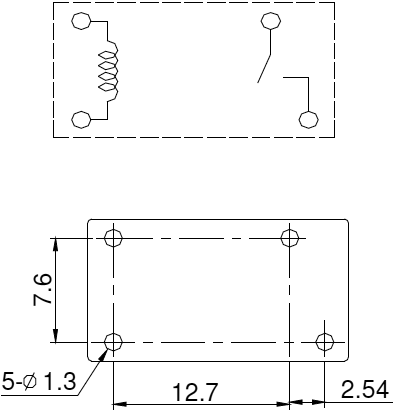

Output configuration  VIEW
Gross weight 5.55 g

Διαθεσιμότητα: Αμεσα
