Relays - Relay electromagnetic, DPDT, Ucoil 24VDC, 10A/110VAC, 10A/24VDC

Prod code: 31546

LY2-N-24DC PDF

LY2-N-24DC

Price:  7.01 €
VAT:  1.68 €
Final price with tax:  8.69 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating 10 A / 110 VAC
DC contacts rating 10 A / 24 VDC
Contact current max. 10A
Switched voltage max 125V DC, max 250V AC
Relay variant industrial
Mounting socket
Coil voltage min. 19.2V DC
Relay series LY2
Operating temperature 25...40°C
Body dimensions 28 x 21.5 x 36mm
Coil resistance 650Ω
Mechanical durability 100000000cycles
Operate time 25ms
Release time 25ms
Relay features LED
Switching capacity 1100VA, 240W
Contact resistance 50mΩ
Coil power consumption 0.9W
Leads 4.8x0.5mm connectors

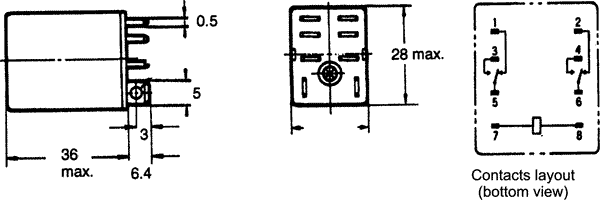

Dimensions  VIEW

Availability: With order
