Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 20A/250VAC, 20A

Κωδικός: 36990

RM85H7-Z-12VDC PDF

RM85H7-Z-12VDC

Τιμή χωρίς ΦΠΑ:  7.37 €
Αξία ΦΠΑ:  1.77 €
Τελική με ΦΠΑ:  9.13 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 20A / 250V AC
DC contacts rating @R 20A / 24V DC
Contact current max. 20A
Switched voltage max. 250V DC,   max. 440V AC
Relay variant horizontal,   miniature
Mounting PCB
Coil resistance 580Ω
Coil voltage min. 9V DC
Coil voltage max. 36V DC
Operate time 8ms
Body dimensions 29x12.7x15.7mm
Release time 3ms
Coil power consumption 250mW
IP rating IP40
Operating temperature -40...105°C
Relay series RM85H7
Contact resistance 100mΩ
Terminal pitch 7.5mm
OEM number 855396
Leads 6,3x0,8mm connectors,   for PCB

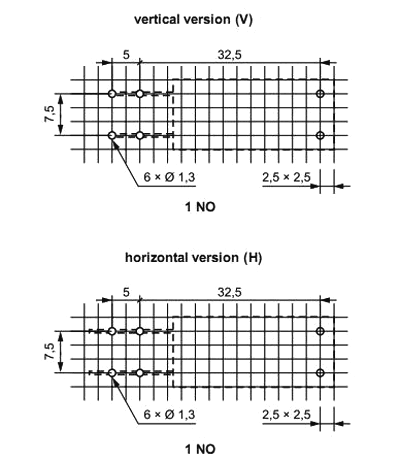

Output configuration  VIEW

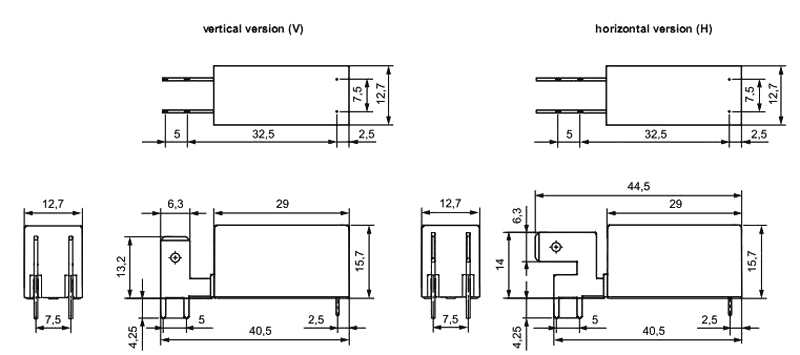

Dimensions  VIEW
Gross weight 14.42 g

Διαθεσιμότητα: Με παραγγελία
