Relays - Relay electromagnetic, DPDT, Ucoil 12VDC, 30A, Series T92, 86Ω

Prod code: 40358

t92.pdf PDF

T92P11D22-12

Click to enlarge
Relay  electromagnetic, DPDT, Ucoil  12VDC, 30A, Series  T92, 86Ω
Price:  25.04 €
VAT:  6.01 €
Final price with tax:  31.05 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
Contact current max. 30A
Relay series T92
Relay variant power
Operating temperature -40...85°C
Mounting on panel
Body dimensions 65.85x34.54x26.42mm
Switched voltage max. 28V DC, max. 600V AC
Coil resistance 86Ω
AC contacts rating @R(at resistive load) 30A / 277V AC
Contact material AgCdO
Coil power consumption 1.7W
Leads connectors 6,35x0,8mm
DC contacts rating @R(at resistive load) 20A / 28V DC
Mechanical durability 5000000 cycles

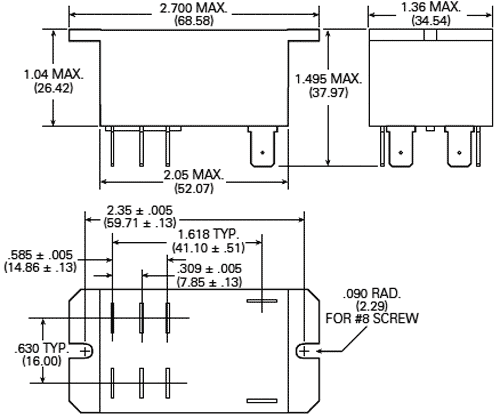

Dimensions  VIEW

Availability: On stock
