Specifications |
| Manufacturer |
OMRON |
| Type of relay |
electromagnetic |
| Contacts configuration |
DPDT |
| Rated coil voltage |
24V AC |
| AC contacts rating @R |
10A / 110V AC |
| DC contacts rating @R |
10A / 24V DC |
| Contact current max. |
10A |
| Switched voltage |
max. 125V DC, max. 250V AC |
| Relay variant |
industrial |
| Mounting |
socket |
| Coil voltage min. |
19.2V AC |
| Relay series |
LY2 |
| Operating temperature |
-25...40°C |
| Body dimensions |
28x21.5x36mm |
| Coil resistance |
180Ω |
| Mechanical durability |
50000000 cycles |
| Operate time |
25ms |
| Release time |
25ms |
| Contact resistance |
50mΩ |
| Coil power consumption |
1.2VA |
| Leads |
4,8x0,5mm connectors |
| Switching capacity |
240W, 1100VA |
| Related items |
PT08-0, PTF08A-E |

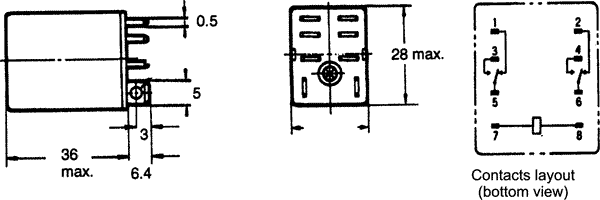

| Dimensions |
 VIEW |
| Gross weight |
32.04 g |
| |
|
