Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPDT x2, Ucoil 12VDC, 30A, automotive

Κωδικός: 41253

relay_ex1_ex2_e.pdf PDF

EX2-2U1

Τιμή χωρίς ΦΠΑ:  3.10 €
Αξία ΦΠΑ:  0.75 €
Τελική με ΦΠΑ:  3.85 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer NEC
Type of relay electromagnetic
Contacts configuration SPDT x2
Rated coil voltage 12V DC
Contact current max. 30A
Relay variant automotive
Coil voltage min. 6.5V DC
Coil resistance 160Ω
Operating temperature -40...125°C

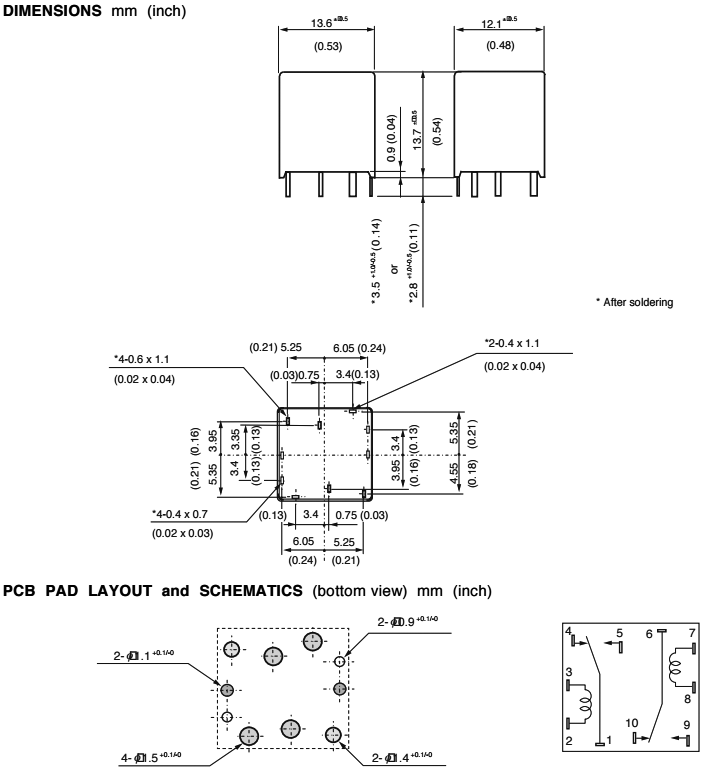

Body dimensions 13.7x13.6x12.1mm
Mounting PCB
Coil power consumption 0.9W
Relay series EX2
Mechanical durability 1000000 cycles
Coil current 75mA
Switched voltage max. 16V DC
Leads  VIEW

Διαθεσιμότητα: Με παραγγελία
