Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 12A, 12A/250VAC, 480mW

Prod code: 40626

RM87N-P-12VDC

Price:  4.61 €
VAT:  1.11 €
Final price with tax:  5.71 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
Contact current max. 12A
AC contacts rating @R(at resistive load) 12A / 250V AC
DC contacts rating @R(at resistive load) 12A / 24V DC
Switched voltage max. 250V DC, max. 440V AC
Relay variant miniature
Mounting PCB, socket
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Coil voltage max. 30.6V DC
Operate time 7ms
Body dimensions 28.5x12.7x15.7mm
Release time 3ms
Coil power consumption 480mW
IP rating IP67
Operating temperature -40...70°C
Relay series RM87N
Contact resistance 100mΩ
Terminal pitch 3.5mm
Related items GD35, GZM92, GZT92
OEM number 600180

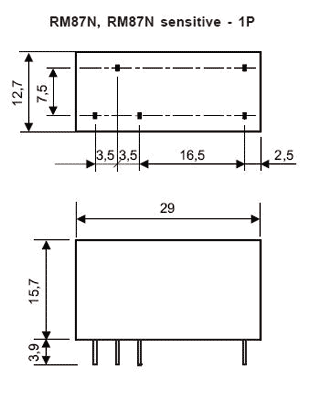

Dimensions  VIEW

Availability: With order
