Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPDT, Ucoil 48VDC, 12A/250VAC, 12A/30VDC

Κωδικός: 32147

LM1-48D PDF

LM1-48D

Τιμή χωρίς ΦΠΑ:  2.96 €
Αξία ΦΠΑ:  0.71 €
Τελική με ΦΠΑ:  3.67 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer RAYEX ELECTRONICS
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 48V DC
AC contacts rating @R 12A / 250VAC
DC contacts rating @R 12A / 30VDC
Contact current max. 12A
Switched voltage max 30V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 4.4kΩ
Operate time 15ms
Body dimensions 29 x 20.5 x 12.5mm
Release time 10ms
Coil power consumption 530mW
Operating temperature 40...80°C
Relay series LM1
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 3.5mm
Coil current 10.9mA

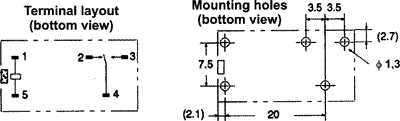

Output configuration  VIEW

Διαθεσιμότητα: Αμεσα
