Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 16A/250VAC, 360Ω

Κωδικός: 37020

RTS3L012 PDF

RTS3L012

Τιμή χωρίς ΦΠΑ:  4.10 €
Αξία ΦΠΑ:  0.98 €
Τελική με ΦΠΑ:  5.08 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 24V DC
Contact current max. 16A
Switched voltage max. 300V DC,   max. 400V AC
Relay variant inrush,   miniature
Mounting THT
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Body dimensions 29x15.7x12.7mm
Coil power consumption 250mW
IP rating IP40
Mechanical durability 10000000 cycles
Operating temperature -40...85°C
Weight 14g
Relay series RT1
Switching capacity 4kVA
Contact material AgSnO2
Terminal pitch 5mm
Height 15.7mm
Number of pins 6
Max surge current 120A

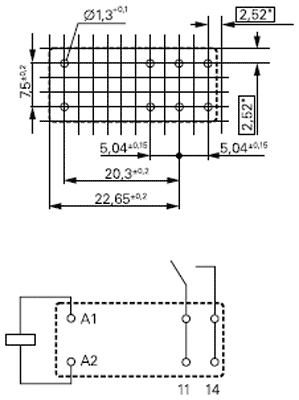

Dimensions  VIEW
Output configuration  VIEW
Gross weight 12.5 g

Διαθεσιμότητα: Με παραγγελία
