Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPDT, Ucoil 12VDC, 8A/250VAC, 8A/30VDC

Κωδικός: 17541

RY211012 PDF

RY211012

Τιμή χωρίς ΦΠΑ:  2.25 €
Αξία ΦΠΑ:  0.54 €
Τελική με ΦΠΑ:  2.79 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 8 A / 30 VDC
Contact current max. 8A
Switched voltage max 250V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 620Ω
Operate time 7ms
Body dimensions 28.5 x 10.1 x 12.3mm
Release time 3ms
Coil power consumption 220mW
Mechanical durability 30000000cycles
Operating temperature 40...85°C
Weight 18g
Relay series RYII
Switching capacity 2000VA
Contact material AgNi
Terminal pitch 3.2mm
Coil current 19.16mA
Enclosure description Standard seal

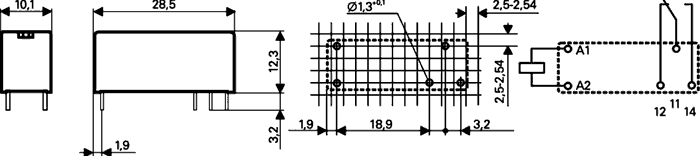

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
