Relays PCB - Relay 1P20A 12VDC

Prod code: 1494

L90-12W PDF

L90-12W

Price:  2.19 €
VAT:  0.53 €
Final price with tax:  2.72 €
Amount:
Warning Long delivery time
Specifications
Manufacturer RAYEX ELECTRONIC
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
Contact current max. 30A
Relay series L90
Relay variant sealed, power
Operating temperature 55...85°C
Mounting PCB
Coil resistance 155Ù
Switched voltage max 240V AC, max 30V DC
Coil power consumption 900mW
DC contacts rating 20 A / 30 VDC
Contact resistance 50mÙ
Leads for PCB
AC contacts rating 30 A / 240 VAC
Operate time 15ms
Release time 15ms
Contact material AgCdO
Mechanical durability 10000000cycles
Electrical life 100000cycles

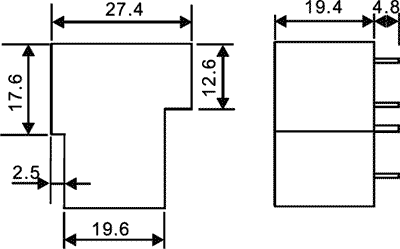

Dimensions  VIEW

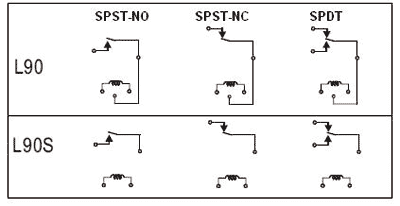

Output configuration  VIEW

Availability: With order
