Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 8A/250VAC, 8A/24VDC, 8A

Prod code: 37316
HF115F/012-2Z4BF PDF

HF115F/012-2Z4BF
Price:  2.79 €
VAT:  0.67 €
Final price with tax:  3.46 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 24V DC
Contact current max. 8A
Switched voltage max. 300V DC,   max. 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Coil voltage max. 18V DC
Operate time 15ms
Body dimensions 29x12.7x15.7mm
Release time 8ms
Coil power consumption 400mW
Operating temperature -40...85°C
Relay series HF115F
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5mm

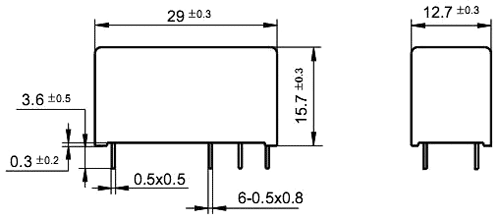

Dimensions  VIEW

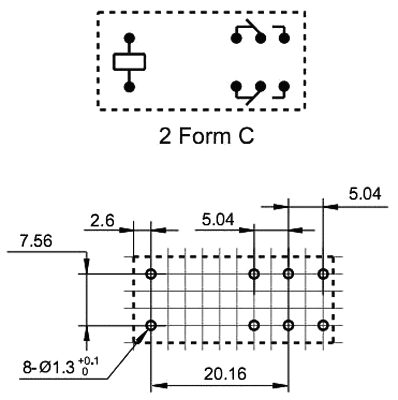

Schematic diagram  VIEW
Gross weight 13.2 g

Availability: With order
