Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 10A/250VAC, 10A/30VDC

Prod code: 37030

36.11.9.012.4001 PDF

36.11.9.012.4001

Price:  2.72 €
VAT:  0.65 €
Final price with tax:  3.37 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 10A / 250V AC
DC contacts rating @R 10A / 30V DC
Contact current max. 15A
Switched voltage max. 220V DC,   max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 400Ω
Coil voltage min. 9V DC
Coil voltage max. 18V DC
Body dimensions 19x15.5x15.5mm
Coil power consumption 400mW
Operating temperature -40...85°C
Relay series 36.11
Contact material AgSnO2
Terminal pitch 2mm

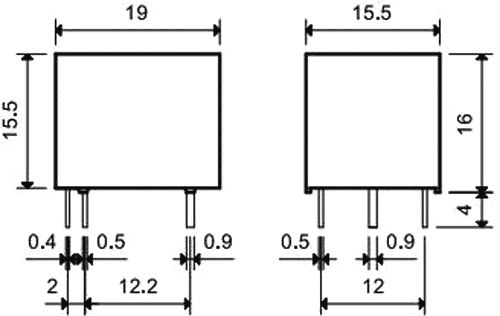

Dimensions  VIEW

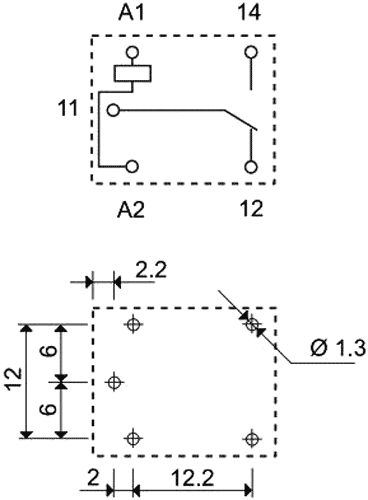

Leads  VIEW
Gross weight 7.06 g

Availability: With order
