Ηλεκτρονόμος πλακέτας - Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/125VAC, 2A/30VDC

Κωδικός: 37688

G5V2-12 PDF

G5V2-12

Τιμή χωρίς ΦΠΑ:  3.11 €
Αξία ΦΠΑ:  0.75 €
Τελική με ΦΠΑ:  3.85 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer OMRON OCB
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating @R 0.5A / 125V AC
DC contacts rating @R 2A / 30V DC
Contact current max. 2A
Switched voltage max. 125V AC,   max. 125V DC
Relay variant miniature
Mounting PCB
Coil resistance 288Ω
Operate time 7ms
Body dimensions 20.5x10.1x11.5mm
Release time 3ms
Coil power consumption 500mW
Operating temperature -25...70°C
Relay series G5V-2
Contact resistance 50mΩ
Terminal pitch 5mm
Coil current 41.7mA
Contact plating gold-plated

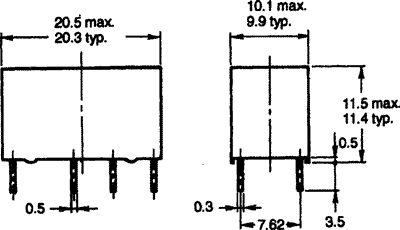

Dimensions  VIEW

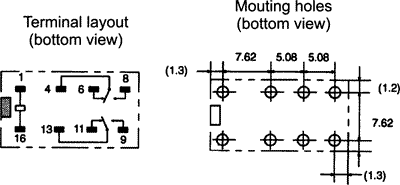

Output configuration  VIEW
Gross weight 5.2 g

Διαθεσιμότητα: Με παραγγελία
