Relays PCB - Relay electromagnetic, DPST-NO, Ucoil 24VDC, 8A/250VAC, 8A/24VDC

Prod code: 26008
RM94-Z-24V PDF

RM94-Z-24V
Specifications
Manufacturer RELPOL
Relay type electromagnetic
Contacts configuration DPST-NO
Rated coil voltage 24V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 8 A / 24 VDC
Contact current max. 8A
Switched voltage max 250V DC, max 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 740Ų
Coil voltage min. 16.8V DC
Coil voltage max. 33.6V DC
Operate time 7ms
Body dimensions 28 x 12.5 x 26mm
Release time 2ms
Coil power consumption 800mW
Sealing IP40
Operating temperature 40...70°C
Weight 20g
Relay series RM94
Contact resistance 100mŲ
Terminal pitch 5mm

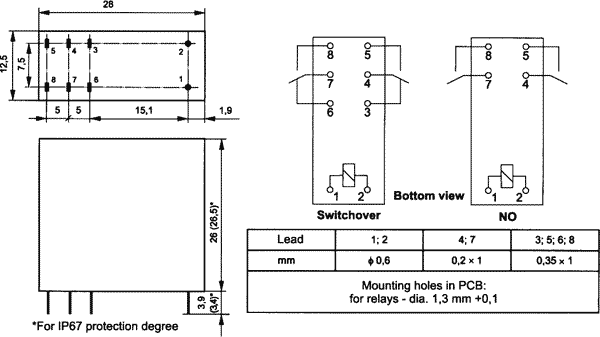

Dimensions  VIEW

Availability: Warning Long delivery time
