Specifications |
Manufacturer |
TE Connectivity |
Relay type |
electromagnetic |
Contacts configuration |
DPDT |
Rated coil voltage |
12V DC |
AC contacts rating |
0.5 A / 125 VAC |
DC contacts rating |
1 A / 30 VDC |
Contact current max. |
3A |
Switched voltage |
max 250V AC, max 220V DC |
Relay variant |
miniature |
Mounting |
PCB |
Coil resistance |
960Ω |
Coil voltage min. |
9.6V DC |
Coil voltage max. |
31.2V DC |
Operate time |
10ms |
Body dimensions |
20.3 x 10.1 x 11.43mm |
Release time |
10ms |
Coil power consumption |
150mW |
Mechanical durability |
150000000cycles |
Operating temperature |
25...70°C |
Relay series |
D2N |
Contact resistance |
100mΩ |
Switching capacity |
60W, 125VA |
Terminal pitch |
5mm |

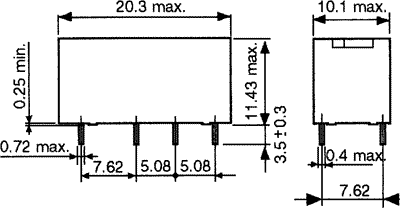

Dimensions |
VIEW |

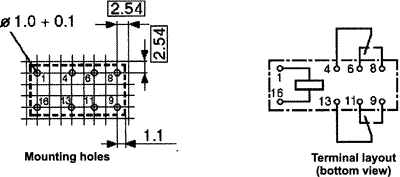

Output configuration |
VIEW |
|
|
