Relays PCB - Reed relay SPDT, 1,2A, 24VDC, PCB mounting

Prod code: 1556

DIP24-1C90-51L PDF

DIP24-1C90-51L

Price:  5.86 €
VAT:  1.41 €
Final price with tax:  7.27 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEDER
Relay type reed
Contacts configuration SPDT
Rated coil voltage 24V DC
Contact current max. 0.5A
Switched voltage max 100V DC, max 100V AC
Coil resistance 2kÙ
Coil power consumption 290mW
Mounting PCB
Case DIP14
Contact resistance 150mÙ
Coil voltage min. 16.8V DC
Coil voltage max. 30V DC
Operating temperature 20...70°C
Soldering temperature 260°C
Body dimensions 13.5 x 7 x 5.7mm
Relay series DIP
Terminal pitch 2.54mm

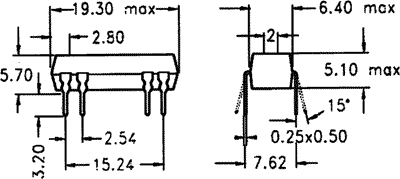

Dimensions  VIEW
Schematic diagram  VIEW

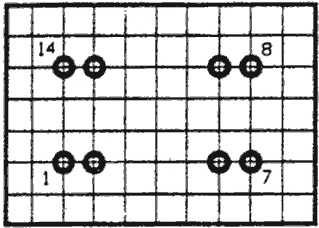

Output configuration  VIEW

Availability: With order
