Limit Switch - Limit switch, spring actuator with tip

Κωδικός: 9660

PAP1T92PZ11

Τιμή χωρίς ΦΠΑ:  22.24 €
Αξία ΦΠΑ:  5.34 €
Τελική με ΦΠΑ:  27.57 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.

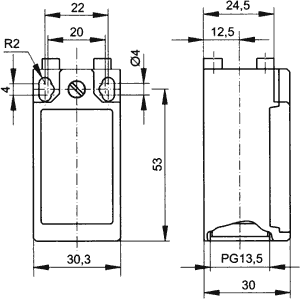

Dimensions
Manufacturer POKΣJ
Sensor type limit switch
Operating temperature -25...70°C
Sealing IP65
Switching frequency max 1 Hz
Operating current max. 10 A
Operating voltage max. 240 V AC
Output configuration NO + NC
Outside dimensions 30.3 x 30 x 53 mm
Symbol Actuator type
PAP1T11PZ11 pin plunger Ø 8 mm
PAP1T13PZ11 plastic roller Ø 10,5 mm
PAP1T31PZ11 plunger with horizontal lever and plastic roller Ø 12,5 mm
PAP1T41PZ11 lever R 27 mm, plastic roller Ø 18 mm
PAP1T51PZ11 adjustable lever R 20-92 mm, plastic roller Ø 18 mm
PAP1T91PZ11 stainless steel spring, total length 110 mm
PAP1T92PZ11 stainless steel spring, total length 95 mm
PAP1T98PZ11A ring
Διαθεσιμότητα: Αμεσα
