Specifications |
Manufacturer |
SUNON |
Type of fan |
AC |
Kind of fan |
axial |
Supply voltage |
230V AC |
Fan dimensions |
60x60x25mm |
Power consumption |
4.1W |
Current rating |
198mA |
Fan efficiency |
29.7m3/h |
Noise level |
30dBA |
Kind of Bearing |
Vapo |
Rotational rate/speed |
4100rpm |
Weight |
81g |
Current and power consumption tolerance |
±15% |
Frequency |
50Hz |
Min. insulation resistance |
10MΩ |
Impeller material |
thermoplastic |
Enclosure material |
thermoplastic |
Leads |
2 leads |
Operating temperature |
-10...70°C |
Cable length |
300mm |
Static pressure |
4.82mm H2O |
Flammability rating |
UL94V-0 |

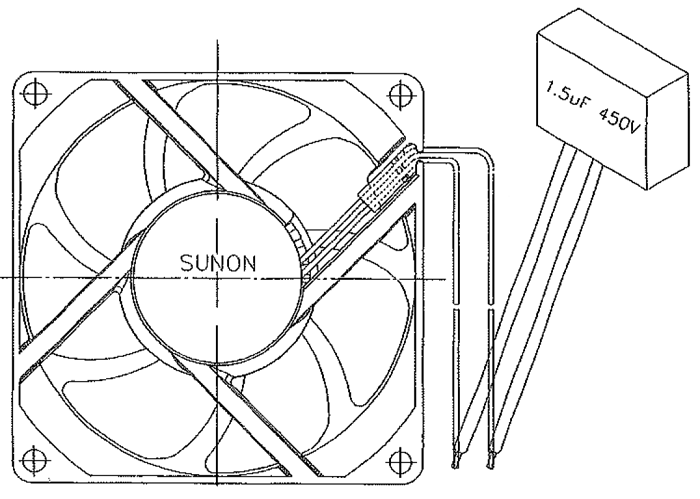

Standard equipment |
suppression capacitor |
Wire size |
24AWG |

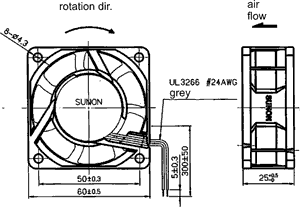

Dimensions |
VIEW |
Assembly method |
VIEW |
Gross weight |
99.8 g |
|
|
