Fan AC - Fan AC, blower, 230VAC, 120x120x37mm, 33.89m3/h, 48dBA, Len 300mm

Prod code: 37099

AB2123HBL PDF

AB2123HBL

Price:  34.08 €
VAT:  8.18 €
Final price with tax:  42.25 €
Amount:
Warning Long delivery time
Specifications
Manufacturer SUNON
Type of fan AC
Kind of fan blower
Supply voltage 230V AC
Fan dimensions 120x120x37mm
Power consumption 20W
Current rating 140mA
Fan efficiency 33.89m3/h
Noise level 48dBA
Kind of Bearing ball bearing
Rotational rate/speed 2600 (±10%)rpm
Current and power consumption tolerance ±15%
Frequency 50Hz
Min. insulation resistance 500MΩ
Impeller material thermoplastic
Enclosure material aluminium
Insulation class B
Leads 2 leads
Operating temperature -10...70°C
Cable length 300mm
Flammability rating UL94V-0
Static pressure 8.12mm H2O
Weight 678g
Wire size 24AWG

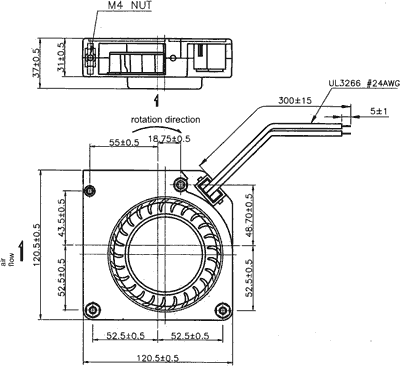

Dimensions  VIEW
Gross weight 666.1 g

Availability: With order
