Encoder - Encoding switch Encoding switch type HEX/BCD Positions 16

Prod code: 14803
ERD116RFZ PDF

ERD116RFZ
Click to enlarge
Encoding switch Encoding switch type HEX/BCD Positions 16
Price:  2.99 €
VAT:  0.72 €
Final price with tax:  3.70 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ECE
Switch type encoding switch
Encoding switch type HEX/BCD
Stable positions number 16-position
Number of positions 16
Operating temperature 25...70°C
Mounting THT
Leads for PCB
Max. contact resistance: 100mΩ
DC contacts rating 0.1 A / 50 VDC
Min. insulation resistance 1000MΩ
Terminal pitch 2.54mm
Switches features without knob
Switching torque 5Ncm
Body dimensions 10 x 10 x 7.55mm
Flammability rating UL94V-0
Soldering temperature 260°C / 5 s
Contact material copper alloy
Contact plating gold plated

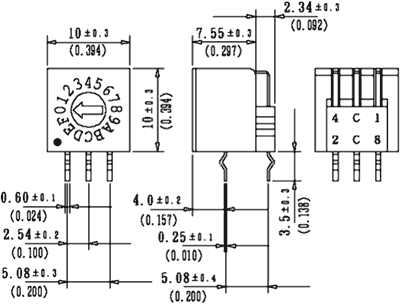

Dimensions  VIEW

Availability: With order
