Encoder - Encoding switch, DEC/BCD, Positions 10, THT, Rcont max 200mŮ

Prod code: 28543

A6R-101RS PDF

A6R-101RS

Price:  4.20 €
VAT:  1.01 €
Final price with tax:  5.21 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Switch type encoding switch
Encoding switch type DEC/BCD
Stable positions number 10-position
Number of positions 10
Operating temperature 25...80°C
Mounting THT
Leads for PCB, straight
Max. contact resistance: 200mΩ
DC contacts rating 0.025 A / 24 VDC
Min. insulation resistance 100MΩ
Terminal pitch 2.54mm
Switches features with knob
Body dimensions 9.9 x 9.8 x 4.5mm

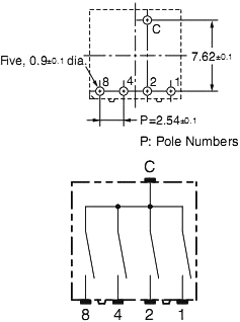

Contacts layout  VIEW

Availability: On stock
