Transformers PCB - Transformer encapsulated, 2.5VA, 230VAC, 7.5V, 7.5V, 166.6mA, IP00

Prod code: 37944

TEZ2.5/D/7.5-7.5V PDF

TEZ2.5/D/7.5-7.5V

Price:  4.44 €
VAT:  1.07 €
Final price with tax:  5.51 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer BREVE TUFVASSONS
Type of transformer encapsulated
Power 2.5VA
Primary voltage 230V AC
Secondary voltage 1 7.5V
Secondary voltage 2 7.5V
Secondary winding current 1 166.6mA
Secondary winding current 2 166.6mA
Mounting PCB
IP rating IP00
Conform to the norm PN-EN 61558-1:2000,   PN-EN 61558-2-1:2000,   PN-EN 61558-2-6:2000
Thermal class Ta40B
Secondary winding terminals 6-7, 9-10
Primary winding terminals 1-5
Weight 100g

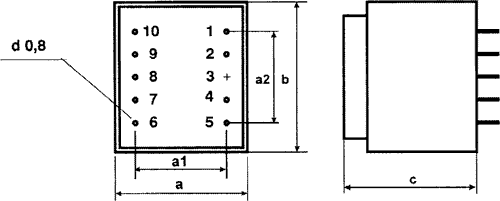

A dimension 28mm
A1 dimension 20mm
A2 dimension 20mm
B dimension 33mm
C dimension 27mm
Electrical insulation strength 4kV/60s
Dimensions  VIEW
Schematic diagram  VIEW
Gross weight 97.28 g

Availability: On stock
