Specifications |
| Manufacturer |
NINIGI |
| Connector type |
terminal block |
| Spatial orientation |
angled 90° |
| Max cable section |
2.5mm2 |
| Number of ways |
2 |
| Contact plating |
tinned |
| Rated current |
16A |
| Flammability rating |
UL94V-0 |
| Colour |
grey |
| Contact material |
brass |
| Rated voltage |
250V |
| Body material |
PBT |
| Electrical mounting |
THT, screw terminal |
| Stripped wire length |
5mm |
| Connectors features |
assembling possibility |
| Length |
10mm |
| Height |
12.5mm |
| Operating temperature |
30...120°C |
| Depth |
9mm |
| Soldering temperature |
250°C / 5 s |

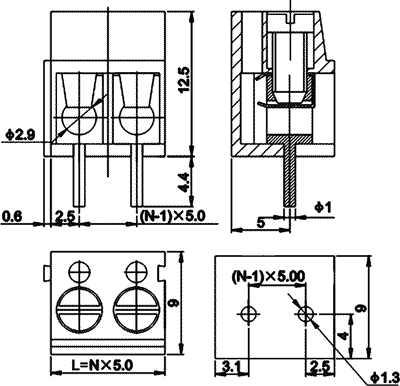

| Dimensions |
 VIEW |
| |
|
