Terminal Blocks - Terminal block angled 1.5mm2 5mm THT screw terminals ways 3

Prod code: 12138

DG301-5.0-3P11 PDF

DG301-5.0-3P11

Price:  0.41 €
VAT:  0.10 €
Final price with tax:  0.50 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer DEGSON ELECTRONICS
Connector type terminal block
Spatial orientation angled 90°
Max cable section 1.5mm2
Contacts pitch 5mm
Number of ways 3
Contact plating tinned
Rated current 15A
Flammability rating UL94V-0
Colour grey
Contact material brass
Rated voltage 300V
Body material PBT
Electrical mounting THT, screw terminal
Connectors features assembling possibility
Length 15mm
Height 10mm
Operating temperature 30...120°C
Depth 7.6mm
Conform to the norm CE

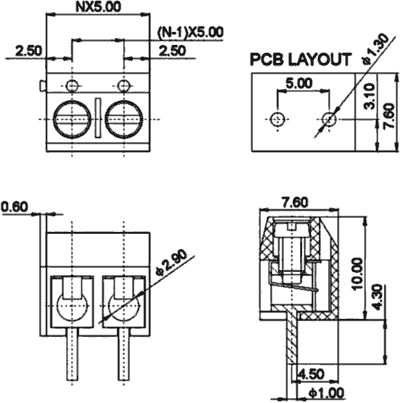

Dimensions  VIEW

Availability: On stock
