Äéáêüðôçò - Switch toggle Contacts SP3T Switch.method ON OFF ON 6A/250V

Prod code: 13057
R13416D701BB PDF

R13416D701BB
Price:  3.44 €
VAT:  0.82 €
Final price with tax:  4.26 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Switch type toggle
Stable positions number 3-position
Contacts configuration SP3T
Switching method ON-OFF-ON
AC contacts rating 6 A / 250 VAC
Leads 6.3x0.8mm connectors
Operating temperature 25...70°C
Mounting hole diameter 12.2mm
Toggle type joystick
Number of positions 3
Body dimensions 28.6 x 16 x 17mm
Max. contact resistance: 50mÙ
Body material polyamide
Panel thickness max 5mm
Flammability rating UL94V-2
Lever colour black
Terminals plating nickel
Panel cutout  VIEW

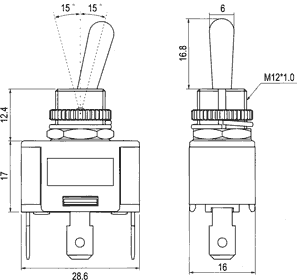

Dimensions  VIEW

Availability: On stock
