Slide Switch - Switch slide, Pos 2, SPDT, 2A/250VAC, ON-ON, No.of term 3, THT

Prod code: 41734

S3PCBKP

Price:  2.05 €
VAT:  0.49 €
Final price with tax:  2.54 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SALECOM ELECTRONICS
Type of switch slide
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R 2A / 250V AC
Switching method ON-ON
Number of terminals 3
Mounting THT
Leads angled, for PCB
Operating temperature -30...85°C
Body dimensions 12.7x6.6x6.35mm
Min. insulation resistance 1GΩ
Max. contact resistance: 10mΩ
Contact plating gold-plated
Knob height 4.72mm
Actuator material polyamide
Stable positions number 2

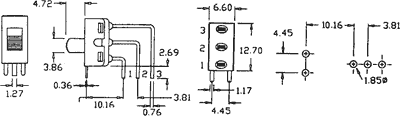

Dimensions  VIEW

Availability: With order
