Äéáêüðôçò - Switch slide 2-position DPDT 0.5A/50VDC ON-ON Mounting THT

Prod code: 15484

SS22F05G4 PDF

SS22F05G4

Price:  0.56 €
VAT:  0.14 €
Final price with tax:  0.70 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer CANAL ELECTRONIC
Switch type slide
Stable positions number 2-position
Contacts configuration DPDT
DC contacts rating 0.5 A / 50 VDC
Switching method ON-ON
Leads for PCB, straight
Body dimensions 11 x 10 x 6.8mm
Mounting THT
Operating temperature 20...60°C
Knob height 4mm
Number of positions 2
Min. insulation resistance 100MÙ
Max. contact resistance: 30mÙ
Terminal pitch 3mm
Electrical life 10000cycles
Row pitch 5.3mm

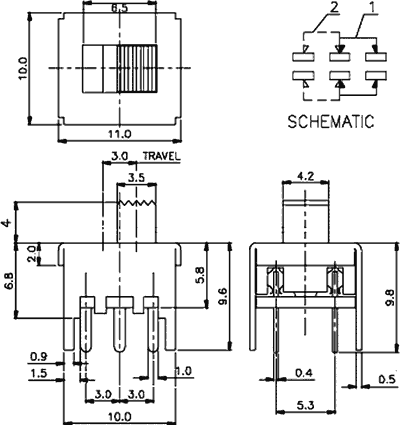

Dimensions  VIEW

Availability: On stock
