Specifications |
| Manufacturer |
LORLIN |
| Switch type |
rotary |
| Stable positions number |
12-position |
| DC contacts rating |
0.15 A / 250 VDC |
| Poles number |
1 |
| Indexed positions |
30° |
| Shaft surface |
smooth |
| Number of positions |
12 |
| Operating temperature |
30...85°C |
| Leads |
for PCB |
| Shaft diameter |
6mm |
| Shaft length |
50mm |
| Fastening thread |
M10x0,75 |
| Min. insulation resistance |
25GÙ |
| Switching method |
BBM |
| Mechanical durability |
10000cycles |
| Contact material |
brass |
| Contact plating |
silver plated |
| Switching torque |
8.6Ncm |
| Body material |
polyamide |

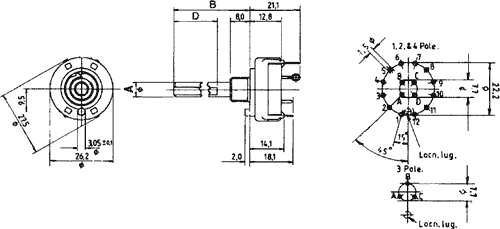

| Dimensions |
 VIEW |
| Contacts layout |
VIEW |
| |
|
