Μπουτόν - Switch push-button, 2-position, SPST-NO, 1A/250VAC, red, Ø12mm

Κωδικός: 21565

PS12ARD PDF

PS12ARD

Τιμή χωρίς ΦΠΑ:  0.66 €
Αξία ΦΠΑ:  0.16 €
Τελική με ΦΠΑ:  0.82 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer NINIGI
Switch type push-button
Stable positions number 2-position
Contacts configuration SPST-NO
AC contacts rating 1 A / 250 VAC
Actuator colour red
Leads for soldering
Switching method OFF-ON
Operating temperature 25...70°C
Mounting hole diameter 12mm
Mounting on panel
Body colour black
Max. contact resistance: 20mΩ
Electrical life 50000cycles

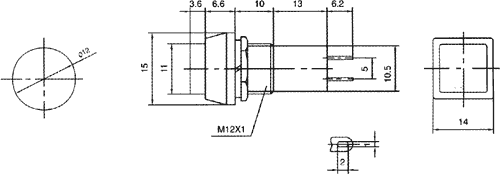

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
