Tact Switch - Switch microswitch monostable SPST NO 0.1A/35VDC 1.2N

Κωδικός: 13582

KS01-BV-BLACK PDF

KS01-BV-BLACK

Τιμή χωρίς ΦΠΑ:  0.54 €
Αξία ΦΠΑ:  0.13 €
Τελική με ΦΠΑ:  0.66 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.01 A / 35 VDC
Mounting THT
Switching torque 1.2N
Body dimensions 12mm
Button height 14.3mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 5x5mm
Operating temperature 20...60°C
Actuator colour black
Leads for PCB, straight
Max. contact resistance: 30mΩ
Min. insulation resistance 100MΩ
Electrical life 100000cycles

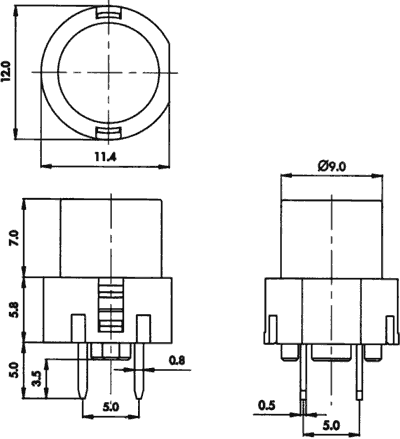

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
