Tact Switch - Switch microswitch monostable DC load:0.5A/48V LED SMD

Prod code: 10403
PB6172ML-13 PDF

PB6172ML-13
Price:  1.48 €
VAT:  0.36 €
Final price with tax:  1.84 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.05 A / 48 VDC
Mounting SMT
Illumination LED
Backlight colour red/green
Switching torque 1.4N
Body dimensions 10mm
Button height 13mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 2.54x6mm
Operating temperature 20...70°C
Actuator colour colourless
Leads for PCB
Max. contact resistance: 100mÙ
Min. insulation resistance 100MÙ
Electrical life 300000cycles

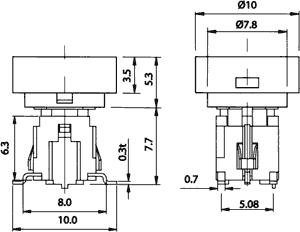

Dimensions  VIEW
Output configuration  VIEW

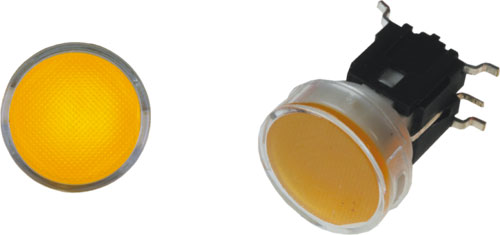

Picture of product  VIEW
Contacts layout  VIEW

Availability: On stock
