Tact Switch - Switch microswitch monostable DC load:0.5A/12V LED THT

Κωδικός: 10384

PB6142FL-13 PDF

PB6142FL-13

Κάντε Κλικ για Μεγέθυνση
Switch microswitch monostable DC load:0.5A/12V LED THT
Τιμή χωρίς ΦΠΑ:  1.17 €
Αξία ΦΠΑ:  0.28 €
Τελική με ΦΠΑ:  1.45 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.05 A / 12 VDC
Mounting THT
Illumination LED
Backlight colour red/green
Switching torque 1.6N
Body dimensions 10 x 10mm
Button height 10mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 5.08x5.08mm
Operating temperature 20...70°C
Actuator colour white
Leads for PCB, straight
Max. contact resistance: 100mΩ
Min. insulation resistance 100MΩ
Electrical life 300000cycles

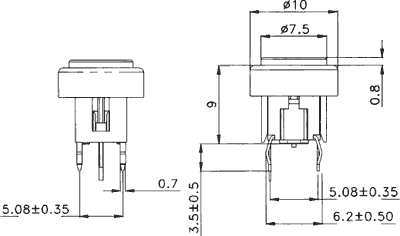

Dimensions  VIEW
Output configuration  VIEW

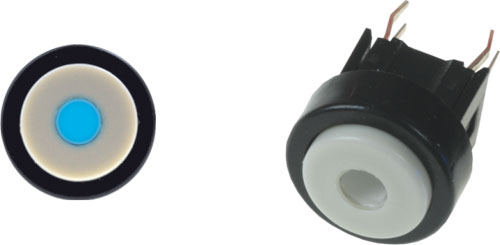

Picture of product  VIEW
Contacts layout  VIEW

Διαθεσιμότητα: Με παραγγελία
