Tact Switch - Switch microswitch monostable DC load:0.5A/12V LED THT

Prod code: 10379
PB6141FL-13 PDF

PB6141FL-13
Price:  1.21 €
VAT:  0.29 €
Final price with tax:  1.50 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.05 A / 12 VDC
Mounting THT
Illumination LED
Backlight colour red/green
Switching torque 1.6N
Body dimensions 7.5 x 7.5mm
Button height 10mm
Switching method OFF-(ON)
Button shape square
Terminal pitch 5.08x5.08mm
Operating temperature 20...70°C
Actuator colour white
Leads for PCB, straight
Max. contact resistance: 100mÙ
Min. insulation resistance 100MÙ
Electrical life 300000cycles

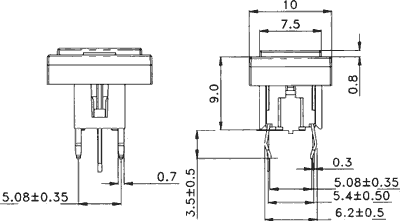

Dimensions  VIEW
Output configuration  VIEW

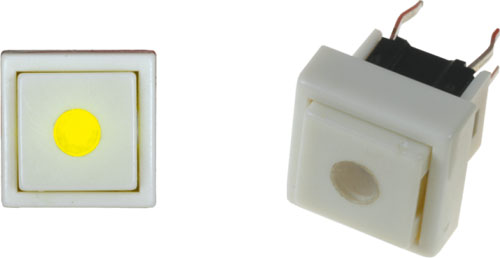

Picture of product  VIEW
Contacts layout  VIEW

Availability: On stock
