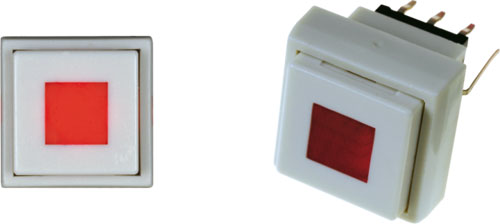

Tact Switch - Switch microswitch monostable DC load:0.1A/30V LED THT

Κωδικός: 10365

PB6135FBL-3 PDF

PB6135FBL-3

Τιμή χωρίς ΦΠΑ:  1.74 €
Αξία ΦΠΑ:  0.42 €
Τελική με ΦΠΑ:  2.15 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration DPDT
DC contacts rating 0.1 A / 30 VDC
Mounting THT
Illumination LED
Backlight colour green
Switching torque 1.5N
Body dimensions 12.5 x 12.5mm
Button height 12.5mm
Switching method ON-(ON)
Button shape square
Terminal pitch 2.54x5.08mm
Operating temperature 10...80°C
Actuator colour white
Leads for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance 100MΩ
Electrical life 10000cycles
Dimensions  VIEW
Output configuration  VIEW
Picture of product  VIEW
Contacts layout  VIEW

Διαθεσιμότητα: Αμεσα
